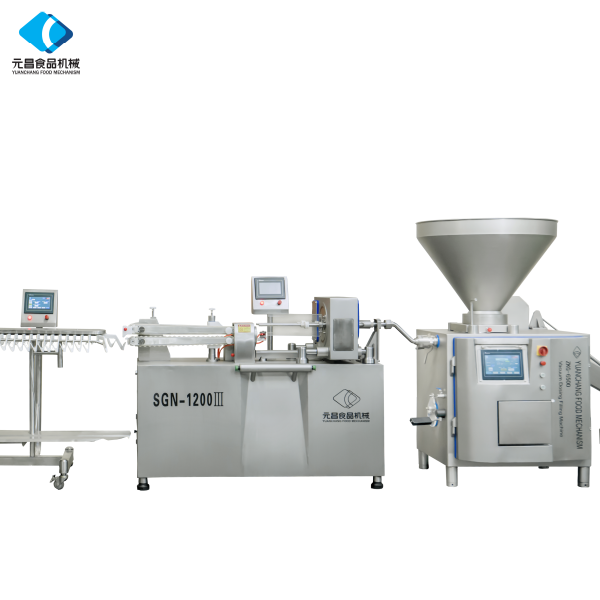

Sausage Linking and Hanging System

High-Speed Linking Production Line – Complete Automated Continuous Production Line for Sausages

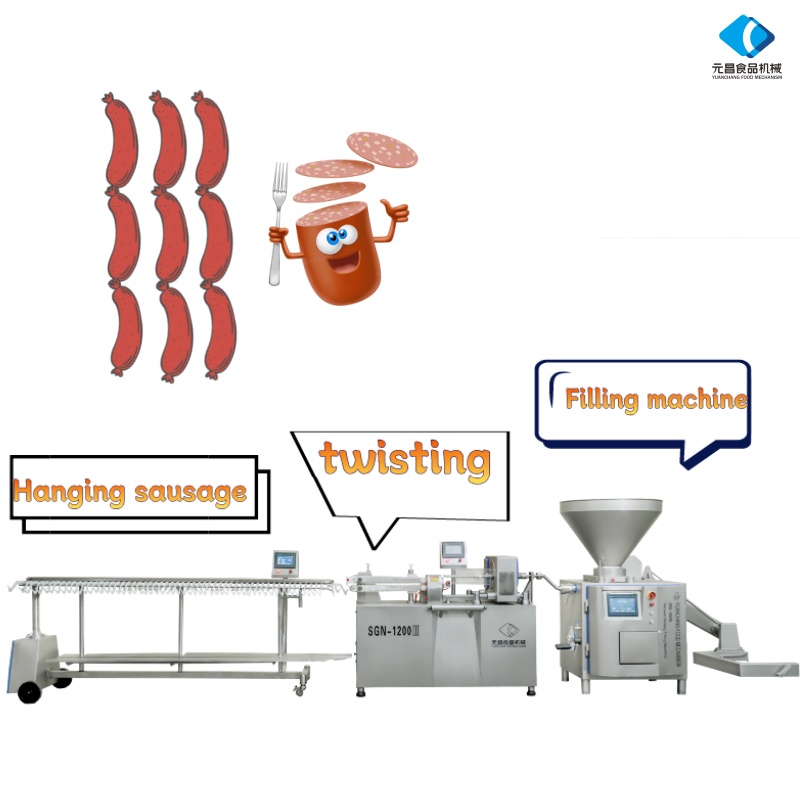

1. Line Configuration

Sausage Linking and Hanging System  adopts a modular integrated design with coordinated and compact workflows. The main components are as follows:

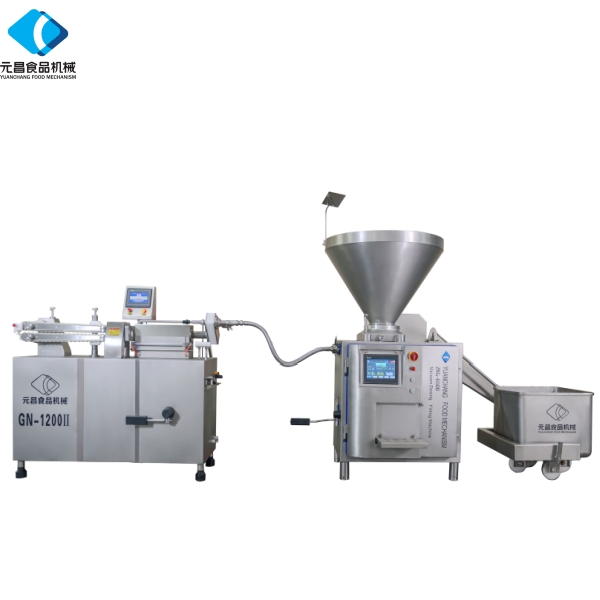

1.Vacuum Filler: Equipped with a vanepump filling mechanism and integrated vacuum degassing to remove air from the cylinder, ensuring firm and fine sausage texture. Compatible with standard 200L hopper trolleys with automatic lifting feeding to reduce manual handling.

2.HighSpeed Servo Linking Unit: Multiservo driven for continuous highspeed linking and portioning, with precise length control and uniform twisting, suitable for smalldiameter casings.

3.Automatic Hanging Rod Conveyor: Automatically arranges linked products for fast transfer to subsequent processes.

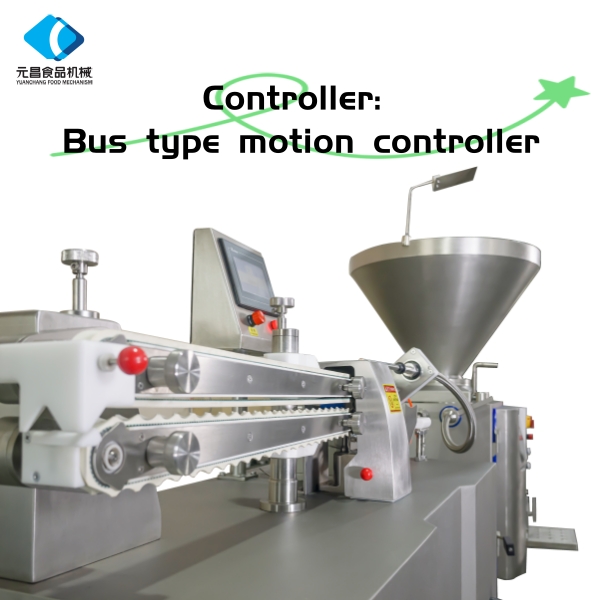

4.EtherCAT Fieldbus Control System: Coordinated line control with ondemand adjustment of speed, weight, spacing and twist counts, plus recipe storage and recall for stable, convenient and fast operation.

2. Working Principle

The entire line is built around synchronised vacuum filling and servo linking, enabling a fully automated continuous process:

1.Vacuum Filling: Smooth feeding via vane pump under vacuum negative pressure to eliminate air bubbles and cavities, slowing fat oxidation.

2.Volumetric Dosing: Precise control of fill weight via servo system for consistent batch weight with controlled tolerance.

3.HighSpeed Linking: Linking head runs synchronously with filling speed with tension compensation for even casing stress and reduced breakage.

4.Automatic Arrangement: Finished products are automatically hung and neatly arranged for rapid transfer to cooking, smoking or freezing stations, forming a closedloop production line.

3. Line Types & Application

3.1 Economy Linking & Portioning Line

Frequencycontrolled design with simple operation and easy setup

Stable linking speed for regular mass production, low maintenance cost

Suitable for mediumtosmall plants producing cocktail sausages, crispy sausages and standard processed sausages

Compatible with collagen and cellulose casings

3.2 ServoIntelligent HighSpeed Linking Line

Multiservo drive architecture with dualstation operation to reduce casing loading time

Touchscreen with multiple production recipes; weight, length, twist count and speed fully customisable

Smooth operation at high speed with consistent spacing and tight linking for high visual uniformity

Designed for largescale production facilities requiring highquality, highappearance sausages

4. Product Range

Snack Sausages: cocktail sausage, Taiwanstyle grilled sausage, crispy sausage, mini finger sausage

Processed Sausages: chicken sausage, beef sausage, corn sausage, vegetable sausage

Frozen premade sausages, breakfast sausages, mini sausages

All smallcalibre, highvolume sausages requiring continuous linking and portioning

5. Company Profile

Hebei Yuanchang Food Machinery Technology Co., Ltd.The management team originates from Huaxing Machinery Factory, founded in 1986, with nearly 40 years of experience in meat processing equipment manufacturing. The company covers approximately 14,000 m² with over 100 employees, more than 20 years of export experience, and products sold in over 70 countries and regions. It is a technologydriven manufacturer integrating R&D, production, sales and service.

The company specialises in standalone meat processing machines and complete plant lines, holding multiple independent patents. All core equipment is CE and EACcertified. Supported by inhouse workshops and imported CNC machines, we guarantee precisionmanufactured components and reliable aftersales service. We provide installation & commissioning, operator training, fast spare parts supply and lifelong technical support to ensure continuous stable production.

6. Line Advantages

The highspeed linking production line is a dedicated complete line for highvolume smallcalibre sausage manufacturing. It integrates vacuum filling, servo linking and automatic arrangement into one streamlined workflow, simplifying processes, stabilising product appearance and reducing labour. The line runs smoothly, offers wide compatibility and is easy to maintain, with customised engineering available for plant layout and capacity requirements.

With decades of manufacturing experience and mature line design capabilities, Yuanchang Machinery supplies highly adaptable and reliable automated linking & portioning lines to meat producers, helping optimise workflows, ensure quality, lower operational costs and strengthen market competitiveness.
