Frozen Block Flaker & Frozen Block Cutter

Frozen Block Flaker & Frozen Block Cutter — Direct Processing Equipment for Frozen Meat Without Thawing

Combined Product Introduction

Frozen Block Flaker and Frozen Block Cutter are core pre-processing machines for the European meat processing industry, specially designed for frozen pork, beef, poultry and standard frozen blocks at -18℃ to 0℃. Both machines process frozen materials directly without thawing or manual pre-cutting, which greatly streamlines production processes, reduces labor, time and energy costs, lowers the risk of raw material pollution, improves product freshness and extends shelf life. With stable structure, safety protection system and easy maintenance, they fully meet the production requirements of modern food factories.

Common Functions & Advantages

• Direct processing of frozen materials at -18℃–0℃, eliminating thawing, pre-cutting and ice-breaking steps.

• Whole-process low-temperature operation, reducing juice loss, bacterial growth and secondary pollution.

• Food-grade stainless steel structure, corrosion-resistant, easy to clean and compliant with food hygiene standards.

• Complete safety protection design, ensuring stable and safe operation in humid workshop environments.

• Simple structure, convenient disassembly and cleaning, low later operation cost and long service life.

• Stable processing efficiency, suitable for small, medium and large-scale meat product factories.

Product Differences

Frozen Block Flaker

• Main function: Shave standard frozen blocks into uniform thin slices.

• Feeding mode: Pneumatic cylinder propulsion, stroke 600mm.

• Feed channel size: Width 560mm × Height 400mm, suitable for standard frozen blocks.

• Feeding feature: Stable conveying and even thrust.

• Safety feature: Automatic power-off when discharge guard is opened.

• Application: Grinding, filling and prepared meat production lines.

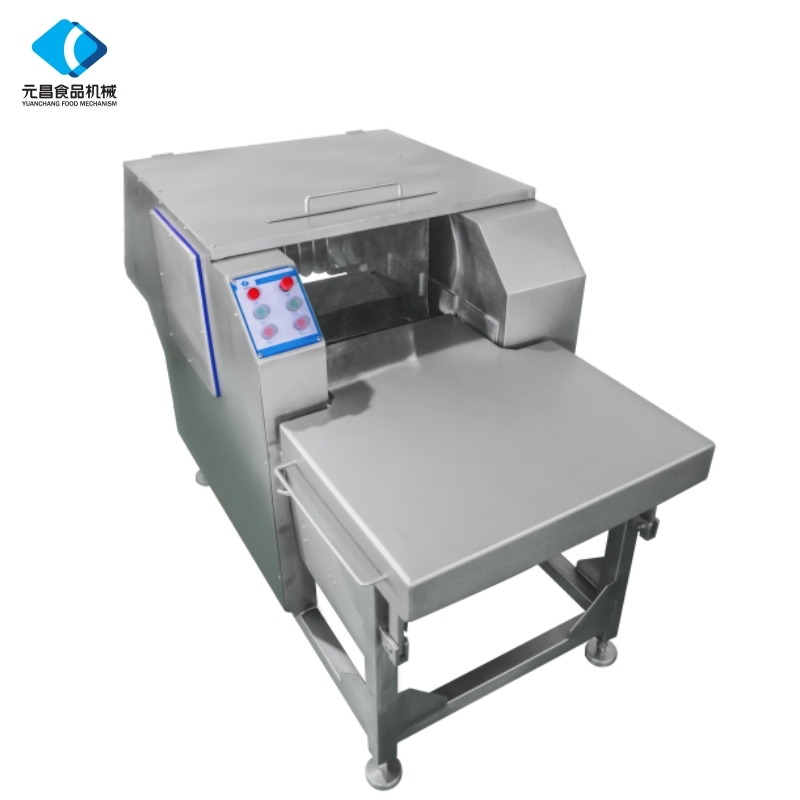

Frozen Block Cutter

• Main function: Cut whole frozen blocks into regular chunks directly.

• Cutting feature: Optimized blade and structure for hard frozen materials, stable and precise.

• Cutting size: Customizable chunk dimensions according to requirements.

• Power system: Strong and stable power output for continuous heavy-duty cutting.

• Safety feature: Safety guards and emergency stop button.

• Application: Ham, bacon, braised meat, pet food and other large-piece product processing.

Core Specifications
